1. woody: model logflux

knitr::opts_chunk$set(warning=FALSE,message=FALSE)
library(woody)
library(tidyverse)
library(DiagrammeR)

Global process

For one site

Global process

For several sites

Here, we want to carry out this process for two sites, so that we use and enrich a nested table from step to step in the following manner:

We detail each step of this process afterwards.

Prepare data

tib_sites: info about wood and discharge data path, and hydrological stations

Prepare data describing the two stations:

tib_sites=tibble::tibble(site=c("Ain","Allier"),
                         q1.5=c(840,460),
                         station=c("V294201001 ","K340081001")) %>%
  mutate(wpath=paste0("../data-raw/Wdata_",site),
         qpath=paste0("../data-raw/qtvar/q",site,".csv"))
tib_sites

## # A tibble: 2 × 5
##   site    q1.5 station       wpath                    qpath
##   <chr>  <dbl> <chr>         <chr>                    <chr>
## 1 Ain      840 "V294201001 " ../data-raw/Wdata_Ain    ../data-raw/qtvar/qAin.csv
## 2 Allier   460 "K340081001"  ../data-raw/Wdata_Allier ../data-raw/qtvar/qAllier…

`Wdata` : wood occurrence data

First step: import wood data , indicating path to files and site name:

We will obtain as a result tib_W= tib_sites completed with Wdata.

result_file="../data-raw/results/tib_W.RDS"
if(!file.exists(result_file)){
  tib_W=tib_sites %>%
    group_by(vars=site,q1.5,station,wpath) %>%
    mutate(Wdata=purrr::map2(.x=wpath,.y=site,
                             ~import_Wdata(path=.x,site=.y,
                                           min_length=1,
                                           sample_length=TRUE
                                           ))) %>%
    mutate(Wdata=purrr::map(.x=Wdata,
                            ~mutate(.x,site=factor(site,levels=tib_sites$site))))
  saveRDS(tib_W,result_file)
}
tib_W=readRDS(result_file)

tib_W looks like this:

site	q1.5	station	wpath	qpath	vars	Wdata
Ain	840	V294201001	../data-raw/Wdata_Ain	../data-raw/qtvar/qAin.csv	Ain	10403 rows x 6 cols
Allier	460	K340081001	../data-raw/Wdata_Allier	../data-raw/qtvar/qAllier.csv	Allier	13806 rows x 6 cols

and inside tib_W, the first lines of Wdata (for both sites) look like this (here for the Ain site):

site	event	sitevent	Time	Length	Date
Ain	event_1	Ain_event_1	2007-11-22 14:20:56	1.51	2007-11-22
Ain	event_1	Ain_event_1	2007-11-22 14:58:13	1.53	2007-11-22
Ain	event_1	Ain_event_1	2007-11-22 14:58:49	4.13	2007-11-22
Ain	event_1	Ain_event_1	2007-11-22 15:09:53	5.29	2007-11-22
Ain	event_1	Ain_event_1	2007-11-22 16:20:35	1.32	2007-11-22
Ain	event_1	Ain_event_1	2007-11-23 06:56:44	3.79	2007-11-23

`Qdata`: collect hydrological data & calculate all variables

Collect qtvar data from banquehydro, for the period covered by Wdata, and back in time so as to be able to calculate \(T_Q\):

result_file="../data-raw/results/tib_WQ.RDS"
if(!file.exists(result_file)){
  tib_WQ=tib_W %>%
    mutate(Qdata=purrr::map(.x=qpath,.y=site,
                            ~import_Qdata(path=.x, site=.y)))
  saveRDS(tib_WQ,result_file)
}
tib_WQ=readRDS(result_file)

tib_WQ looks like this:

site	q1.5	station	wpath	qpath	vars	Wdata	Qdata
Ain	840	V294201001	../data-raw/Wdata_Ain	../data-raw/qtvar/qAin.csv	Ain	10403 rows x 6 cols	86528 rows x 4 cols
Allier	460	K340081001	../data-raw/Wdata_Allier	../data-raw/qtvar/qAllier.csv	Allier	13806 rows x 6 cols	82110 rows x 4 cols

and inside tib_WQ, the first lines of Qdata (for both sites) look like this:

## # A tibble: 6 × 4
##   station  Time                    Q site
##   <chr>    <dttm>              <dbl> <chr>
## 1 V2942010 2001-01-01 00:00:00 113   Ain
## 2 V2942010 2001-01-01 03:00:00 115   Ain
## 3 V2942010 2001-01-01 04:48:00 112   Ain
## 4 V2942010 2001-01-01 05:20:00 107   Ain
## 5 V2942010 2001-01-01 06:06:00  99.8 Ain
## 6 V2942010 2001-01-01 07:18:00  92   Ain

`Qdata` completed with calculation of \(T_Q\) and \(S\)

result_file="../data-raw/results/tib_WQc.RDS"
if(!file.exists(result_file)){
  tib_WQc=tib_WQ %>%
    mutate(Qdata=purrr::map2(.x=Qdata,.y=q1.5,
                             ~complete_Qdata(qtvar=.x, qnorm=.y)))
  saveRDS(tib_WQc,result_file)
}
tib_WQc=readRDS(result_file)

tib_WQc looks like tib_WQ, except now Qdata inside has been completed with new variables:

head(tib_WQc$Qdata[[1]])

## # A tibble: 6 × 7
##   site  station  Time                    Q   T_Q          S  rT_Q
##   <chr> <chr>    <dttm>              <dbl> <dbl>      <dbl> <dbl>
## 1 Ain   V2942010 2001-01-01 00:00:00 0.135 0     NA         0
## 2 Ain   V2942010 2001-01-01 03:00:00 0.137 0.125  0.0000661 0.354
## 3 Ain   V2942010 2001-01-01 04:48:00 0.133 0     -0.000165  0
## 4 Ain   V2942010 2001-01-01 05:20:00 0.127 0     -0.000930  0
## 5 Ain   V2942010 2001-01-01 06:06:00 0.119 0     -0.000932  0
## 6 Ain   V2942010 2001-01-01 07:18:00 0.110 0     -0.000645  0

`Wdata` completed with discharge data

result_file="../data-raw/results/tib_WcQc.RDS"
if(!file.exists(result_file)){
  tib_WcQc=tib_WQc %>%
    mutate(Wdata=purrr::map2(.x=Wdata,.y=Qdata,
                             ~complete_Wdata_with_Qdata(Wdata=.x,Qdata=.y)))
  saveRDS(tib_WcQc,result_file)
}
tib_WcQc=readRDS(result_file)

Inside tib_WcQc, Wdata has been updated into:

## # A tibble: 6 × 10
##   site  event   sitevent    Time                Length Date           Q    T_Q
##   <fct> <chr>   <chr>       <dttm>               <dbl> <date>     <dbl>  <dbl>
## 1 Ain   event_1 Ain_event_1 2007-11-22 14:20:56   1.51 2007-11-22 0.221   4.97
## 2 Ain   event_1 Ain_event_1 2007-11-22 14:58:13   1.53 2007-11-22 0.230   9.82
## 3 Ain   event_1 Ain_event_1 2007-11-22 14:58:49   4.13 2007-11-22 0.230   9.82
## 4 Ain   event_1 Ain_event_1 2007-11-22 15:09:53   5.29 2007-11-22 0.232   9.90
## 5 Ain   event_1 Ain_event_1 2007-11-22 16:20:35   1.32 2007-11-22 0.242   9.99
## 6 Ain   event_1 Ain_event_1 2007-11-23 06:56:44   3.79 2007-11-23 0.449 134.
## # … with 2 more variables: S <dbl>, rT_Q <dbl>

Calculate waiting times to apply random forest model

We then calculate tib_Wwt, updating Wdata so that 1 row= 1 waiting time between two wood occurrences.

result_file="../data-raw/results/tib_WwtQc.RDS"
if(!file.exists(result_file)){
  tib_WwtQc=tib_WcQc %>%
    mutate(Wdata=purrr::map(.x=Wdata,~Wdata_as_waiting_times(.x)))
  saveRDS(tib_WwtQc,result_file)
}
tib_WwtQc=readRDS(result_file)

Inside tib_Wwt, Wdata now looks like this (for both sites):

## # A tibble: 6 × 15
##   site  event   sitevent    Time                Length Date           Q    T_Q
##   <fct> <chr>   <chr>       <dttm>               <dbl> <date>     <dbl>  <dbl>
## 1 Ain   event_1 Ain_event_1 2007-11-22 14:58:49   4.13 2007-11-22 0.230   9.82
## 2 Ain   event_1 Ain_event_1 2007-11-22 15:09:53   5.29 2007-11-22 0.232   9.90
## 3 Ain   event_1 Ain_event_1 2007-11-23 06:57:47   1.66 2007-11-23 0.450 134.
## 4 Ain   event_1 Ain_event_1 2007-11-23 06:57:48   1.41 2007-11-23 0.450 134.
## 5 Ain   event_1 Ain_event_1 2007-11-23 06:57:53   1.33 2007-11-23 0.450 134.
## 6 Ain   event_1 Ain_event_1 2007-11-23 06:57:59   1.79 2007-11-23 0.450 134.
## # … with 7 more variables: S <dbl>, rT_Q <dbl>, TimeLagged <dttm>, W <dbl>,
## #   npieces <int>, num <int>, Y <dbl>

Prediction

Run random forest on Wdata (both sites)

We run one random forest for both sites. Site is one of the predictors anyway.

# get a single table for Wdata (waiting times)
Wwt=tib_WwtQc %>%
  ungroup() %>%
  select(Wdata) %>%
  tidyr::unnest(Wdata)

file_result="../data-raw/results/rf.RDS"
if(!file.exists(file_result)){
  myrf <- run_rf(Wwt,
                 pred_vars=c("Q","S","rT_Q","site"))
  saveRDS(myrf,file_result)
}
myrf=readRDS(file_result)

Predict Wdata based on random forest

tib_WpQc=tib_WwtQc %>%
  mutate(Wdata=purrr::map(.x=Wdata,~predict_rf(newdata=.x,obj_rf=myrf)))

saveRDS(tib_WpQc,"../data-raw/results/tib_WpQc.RDS")

Model performance

Now let’s assess the model’s predictive performance

For both sites:

R2=tib_WpQc %>% select(site,Wdata) %>%
  mutate(R2=purrr::map_df(Wdata,calc_rf_R2)) %>%
  unnest(R2)
R2

## # A tibble: 2 × 9
## # Groups:   vars, q1.5, station, wpath [2]
##   vars    q1.5 station       wpath            site  Wdata       SCR    SCT    R2
##   <chr>  <dbl> <chr>         <chr>            <chr> <list>    <dbl>  <dbl> <dbl>
## 1 Ain      840 "V294201001 " ../data-raw/Wda… Ain   <tibble> 19760. 31343. 0.370
## 2 Allier   460 "K340081001"  ../data-raw/Wda… Alli… <tibble> 29112. 48109. 0.395

Plot predicted/observed

Wdata_pred=tib_WpQc %>%
  select(Wdata) %>%
  tidyr::unnest(Wdata, .name_repair="minimal") %>%
  ungroup() %>%
  mutate(Ycat=cut(Y,quantile(Y,seq(0,1,by=0.1),include.lowest=TRUE)))

p=ggplot(Wdata_pred,aes(x=Y_pred,y=Y))+
  geom_point(alpha=0.05)+
  geom_abline(intercept=0,slope=1, col="red")+
  facet_grid(cols=vars(site),
             labeller = labeller(.rows = label_both,
                                 .cols = label_both))+
  geom_smooth(method="lm")
plot(p)

Correction of prediction bias linked to covariate shift

Due to covariate shift, there is a tendency to overestimate low values of Y and underestimate high values of Y (trend in blue, theoretical Y=X line in red).

\[Y=\alpha*Y_{pred}+\beta\]

We will apply a simple linear correction of predictions to account for this in the predict_rf function (arguments)

lm_mod=lm(Y~Y_pred, data=Wdata_pred)
alpha=lm_mod$coefficients[[2]]
beta=lm_mod$coefficients[[1]]
saveRDS(c(alpha,beta),"../data-raw/correction_covariate_shift.RDS")

So we correct \(Y_{pred}\) values accordingly

tib_WpQc=tib_WwtQc %>%
  mutate(Wdata=purrr::map(.x=Wdata,
                          ~predict_rf(newdata=.x,
                                      obj_rf=myrf,
                                      correction=c(alpha,beta))))

saveRDS(tib_WpQc,"../data-raw/results/tib_WpQc.RDS")

R2=tib_WpQc %>% select(site,Wdata) %>%
  mutate(R2=purrr::map_df(Wdata,calc_rf_R2)) %>%
  unnest(R2)
R2

## # A tibble: 2 × 9
## # Groups:   vars, q1.5, station, wpath [2]
##   vars    q1.5 station       wpath            site  Wdata       SCR    SCT    R2
##   <chr>  <dbl> <chr>         <chr>            <chr> <list>    <dbl>  <dbl> <dbl>
## 1 Ain      840 "V294201001 " ../data-raw/Wda… Ain   <tibble> 17575. 31343. 0.439
## 2 Allier   460 "K340081001"  ../data-raw/Wda… Alli… <tibble> 26937. 48109. 0.440

Wdata_pred=tib_WpQc %>%
  select(Wdata) %>%
  tidyr::unnest(Wdata, .name_repair="minimal") %>%
  ungroup() %>%
  mutate(Ycat=cut(Y,quantile(Y,seq(0,1,by=0.1),include.lowest=TRUE)))

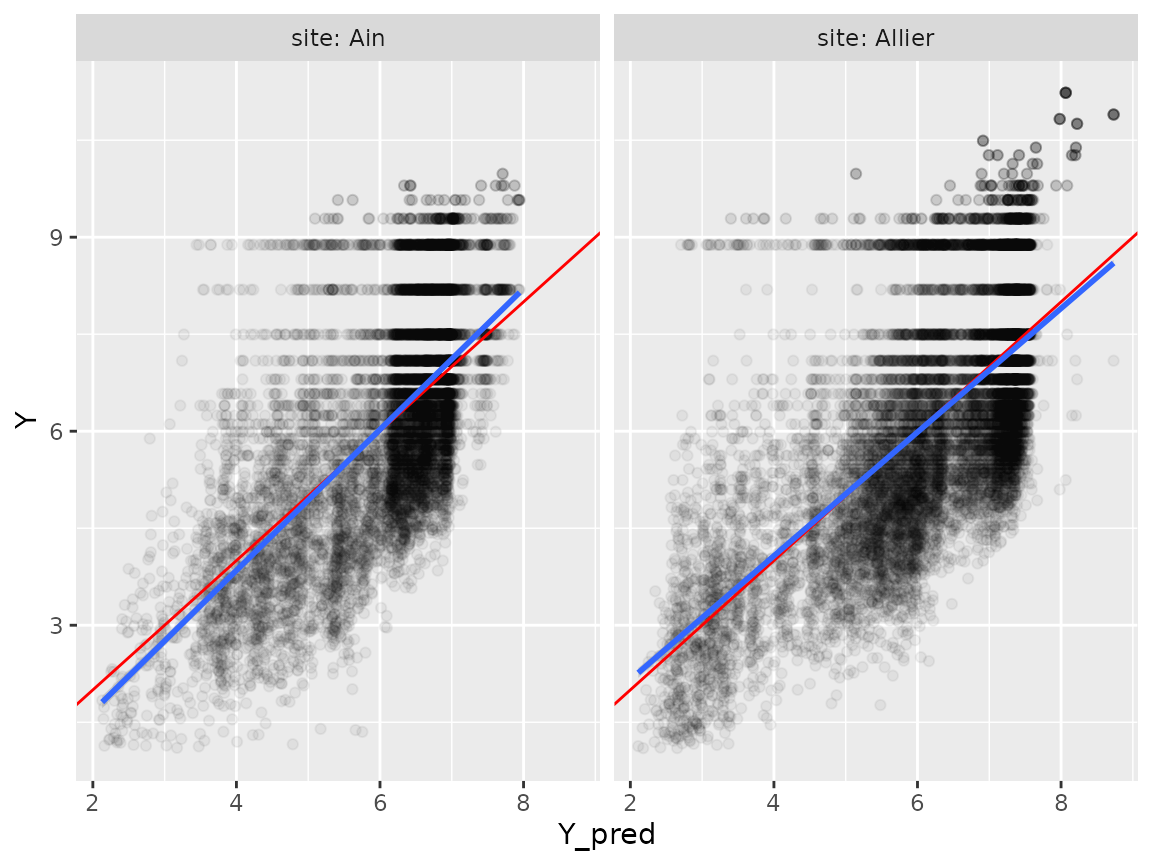

p=ggplot(Wdata_pred,aes(x=Y_pred,y=Y))+
  geom_point(alpha=0.05)+
  geom_abline(intercept=0,slope=1, col="red")+
  facet_grid(cols=vars(site),
             labeller = labeller(.rows = label_both,
                                 .cols = label_both))+
  geom_smooth(method="lm")
plot(p)
